The solar energy Air condition
Solar air conditioner, 2p-18000btu Capacity: Btu/kw , 18000/5.18btu/kw Air flow 800m3 /h Rated input power 1.45kw
  • Function characteristic
  • Technical parameters
  • Interface description
  • Equipment advantage
Solar air conditioner, 2p-18000btu Capacity: Btu/kw , 18000/5.18btu/kw Air flow 800m3 /h Rated input power 1.45kw

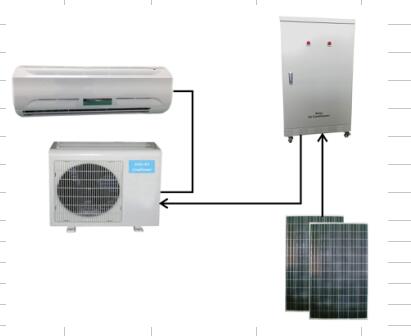

18 btu hybrid solar air conditioner

 Solar air conditioner,   2p-18000btu

 Capacity: Btu/kw , 18000/5.18btu/kw

Air flow 800m3 /h

Rated input power 1.45kw

Rated power supply DC-24V DC-48V

Battery voltage  DC-24V DC-48V

Solar panels voltage  DC--36 DC-72V

Suggest solar panel   150w 18V *10=1500w

Rated current DC-24V 58A DC-48V 29A

Battery 200AH-12V*4 12hour

Time for25-32 m2 room 15-28min

Over voltage protection, yes

Low voltage protection, yes

Reverse protection , yes

Size: indoor uint: 1075*300*225mm

 Net dimension   Outdoor unit:845*712*315mm

G. W:  indoor unit 16.7kg

  Noise(dB)  Indoor Unit:<43db

             Outdoor Unit:<54db
