Wall split DC48V R410a, Air conditioner
  • Function characteristic
  • Technical parameters
  • Interface description
  • Equipment advantage
Main Features of Wall split DC48V R410a 1.Up and Down air outlet 2.Low noise 3.Sleep mode 4.Turbo mode 5.Automatic Restart function 6.Automatic temperature adjustment 7.Super -quality internal threaded copper pipe 8.Multi-folds evaporator 9. Special features of filters

solar dc air conditioner

Main Features of Wall split DC48V R410a

1.Up and Down air outlet

2.Low noise

3.Sleep mode

4.Turbo mode

5.Automatic Restart function

6.Automatic temperature adjustment

7.Super -quality internal threaded copper pipe

8.Multi-folds evaporator

9. Special features of filters

Specification of Wall split

Model wm-50GW/BP

Power supply Ph-V-Hz DC48V

Cooling Capacity                     Btu/h 18000

2P

Input         W 888

Rated current   A 18.5

EER         W/W 5.18

Heating Capacity                     Btu/h 19000

Input         W 885

Rated current   A 18.43

Moisture Removal             L/h 1.7

Max. input consumption         W 1500

Max. current             A 31.25

Starting current             A 3

Compressor Model DA130S1C-20FZ

Type ROTARY

Brand TOSHIBA(GMCC)

Capacity           Btu/h 13128

Thermal protector INT01L-4639 or  KSD301

Thermal protector position EXTERNAL

Capacitor       uF NO

Refrigerant oil/oil charge   ml ESTER OIL VG74 /500

Indoor fan motor Model ARW7202WR

Brand Panasonic

Input           W 25

Capacitor     uF NO

Speed(Hi/Mi/Lo) r/min 1250/1000/800

Indoor coil a.Number of rows 20

b.Tube pitch(a)x row pitch(b) mm 20.5*13

c.Fin spacing             mm 1.5

d.Fin type (code) blind

e.Tube outside dia.and type mm Φ7,innergroove tube

f.Coil length x height x width   mm 818*369*26

g.Number of circuits 4

h.Material and coatings Hydrophilic aluminium

Static pressure MPa 1.5

Indoor air flow (Hi/Mi/Lo) m3/h 950/750/600

Indoor noise level (Hi/Mi/Lo) dB(A) ≤45/40/35

Indoor unit Dimension(W*D*H) mm 1090*330*230

Packing   (W*D*H) mm 1145*375*305

Net/Gross weight   Kg 16.5/19

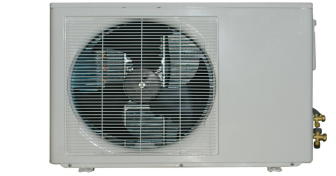

Outdoor fan motor Model Y09-9538-907

Brand Shinano

Input           W 130

Capacitor     uF NO

Speed       r/min 1000

Outdoor coil a.Number of rows 34

b.Tube pitch(a)x row pitch(b)   mm 20.5*13

c.Fin spacing             mm 1.5

d.Fin type (code) blind

e.Tube outside dia.and type mm Φ7,innergroove tube

f.Coil length x height x width   mm 807*700*26

g.Number of circuits 2

h.Material and coatings Hydrophilic aluminium

Outdoor air flow       m3/h 2400

Outdoor noise level     dB(A) ≤56

Outdoor unit Dimension(W*D*H) mm 865*310*710

Packing  (W*D*H) mm 1025*395*790

Net/Gross weight   Kg 53/58

Refrigerant type and charge volume g R410a(1350)

Design pressure   MPa 4.3/1.5

Refrigerant piping Liquid side/ Gas side   mm(inch) 7/8   3/8

Max. refrigerant pipe length m 20

Max. difference in level   m 10

Drain pipe size mm 16

Connection wiring     m 3.8

DC48V power incoming line m2 ≥6

Thermostat type NTC

Expansion valve type DPF(Q)-1.65C

Expansion valve type Brand SANHUA

Operation temp             16℃~31℃

Ambient temp (cooling/heating) 18-50/-15-34

Application area         m2 25-40

Qty’per 20’ /40’ /40'HQ     62/122/150

Refrigerant piping In side/ Out side mm 9.52/8.12、15.88/14.08

Refrigerant pipinglength m 3

Cabined material Galvanized sheet
